Brown and Sharpe 598-10-18 Micrometer Checking Set 0.105 to 1 inch 12-Pc Set

by Brown & Sharpe-TESA-Hexagon
ID#: 598-10-18-HEX
|MFGID: 598-10-18
Your Price:
$396.92
Add Calibration w/ Certificate?
No
  • No
  • Yes - Contact Me With A Quote
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

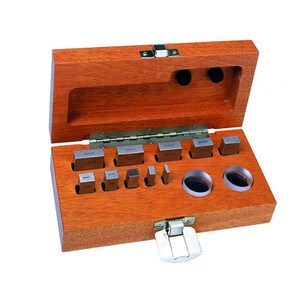

Brown& Sharpe 598-10-18 gage block micrometer checking set includes a set of 10 gage blocks and two optical flats that are used to verify the measuring accuracy of micrometers with a 0 to 1" measuring range. Two optical flats have a 0.500" and 0.5125" diameter and are used to verify the flatness of anvil faces at half revolutions of the micrometer spindle. Grade 2 high-alloy steel gage blocks have a hardness of 800 HV (Vickers Pyramid Number) and are artificially aged to ensure stability. The gage blocks meet federal specification GGG-C-15c and MIL-STD-45662A, are individually inscribed with a serial number for identification, and include a Certificate of Calibration. Grade 2 gage blocks are commonly used as Working Standards in inspection rooms to set and calibrate measuring instruments and other equipment as well as to inspect tools, fixtures, and machines. Gage block sizes include 0.105", 0.210", 0.315", 0.420", 0.500", 0.605", 0.710", 0.815", 0.920", and 1.00". The gage block and optical flat set includes a fitted wooden box. What's in the Box? •1.00 micrometer gage block •.920 micrometer gage block •.815 micrometer gage block •.710 micrometer gage block •.605 micrometer gage block •.500 micrometer gage block •.420 micrometer gage block •.315 micrometer gage block •.210 micrometer gage block •.105 micrometer gage block •0.500" diameter optical flat •0.5125" diameter optical flat •Gage blocks Certificate of Calibration •Fitted wooden storage case

Specifications

  • Range:0-1in
  • Accuracy:+--0.003mm
