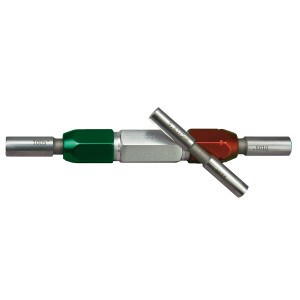

Deltronic Steel Class X Plug Gage Double End Assembly w/handle .0751" to .1080" [1.9100mm to 2.7425mm]

by Deltronic
ID#: DEL-PLGX-0751-1080
|MFGID: DEL-PLGX-0248-1080
Your Price:
$41.07
Etching can be added to the Assembly as an accessory listed below the gage detailed description.
Your Price:
$41.07
Etching can be added to the Assembly as an accessory listed below the gage detailed description.
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Cylindrical Plug Gage - Double End - Up to 4 Inch (+ $35.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Every Class “X” Deltronic gage, throughout their entire range of sizes, is made to the same size and roundness tolerances. Tolerance: Inch +.000040"/-0 [Metric +0.0010mm/-0]. Roundness: Inch 0.000020" [Metric 0.0005mm]. Supplied with Certificate of Accuracy traceable to the National Institute of Standards and Technology. Made from heat treated steel to a hardness of Rockwell “C” 62-64. Each gage is lapped to approximately one microinch finish that creates a mirror-like surface with additional resistance to wear.

Specifications

  • Type:Tool Steel 62-64 Rc
  • Accuracy:Tolerance +.000040"/-0
  • Details:Certificate of Accuracy included
  • Specifications:Approximately one microinch finish
  • Roundness 0.000020" [Metric 0.0005mm]
  • Length 2 1/4"

Info and Guides

OPTIONAL ACCESSORIES

ID#Product NamePrice
Deltronic-Handle-MarkingInitial 3 flats etched up to 12 digits $4.00

PRODUCT SERIES

ID#Product NamePrice
DEL-PLGX-0040-0150Deltronic Steel Class X Plug Gage Double End Assembly w/handle .0040" to .0150" [.1000mm to .3800mm] $48.47
DEL-PLGX-0151-0247Deltronic Steel Class X Plug Gage Double End Assembly w/handle .0151" to .0247" [.3825mm to .6275mm] $46.15
DEL-PLGX-0248-0750Deltronic Steel Class X Plug Gage Double End Assembly w/handle .0248" to .0750" [.6300mm to 1.9000mm] $40.61
DEL-PLGX-0751-1080Deltronic Steel Class X Plug Gage Double End Assembly w/handle .0751" to .1080" [1.9100mm to 2.7425mm] $41.07
DEL-PLGX-1081-1800Deltronic Steel Class X Plug Gage Double End Assembly w/handle .1081" to .1800" [2.7450mm to 4.5700mm] $38.31
DEL-PLGX-1801-2810Deltronic Steel Class X Plug Gage Double End Assembly w/handle .1801" to .2810" [4.5725mm to 7.1300mm] $38.31
DEL-PLGX-2811-3872Deltronic Steel Class X Plug Gage Double End Assembly w/handle .2811" to .3872" [7.1325mm to 10.0350mm] $39.24
DEL-PLGX-3873-4060Deltronic Steel Class X Plug Gage Double End Assembly w/handle .3873" to .4060" [9.8375mm to 10.3125mm] $40.62
DEL-PLGX-4061-5100Deltronic Steel Class X Plug Gage Double End Assembly w/handle .4061" to .5100" [10.3125mm to 12.9500mm] $44.31
DEL-PLGX-5101-6375Deltronic Steel Class X Plug Gage Double End Assembly w/handle .5101" to .6375" [12.9525mm to 16.1925mm] $49.85
DEL-PLGX-6376-7600Deltronic Steel Class X Plug Gage Double End Assembly w/handle .6376" to .7600" [16.1950mm to 19.3050mm] $60.45
DEL-PLGX-7601-8370Deltronic Steel Class X Plug Gage Double End Assembly w/handle .7601" to .8370" [19.3075mm to 21.2575mm] $68.76
DEL-PLGX-8371-10120Deltronic Steel Class X Plug Gage Double End Assembly w/handle .8371" to 1.0120" [21.2600mm to 25.7000mm] $66.45
