  • Deltronic Steel Class X Plug Gage Member .0248" to .1080" [.6300mm to 2.7425mm]

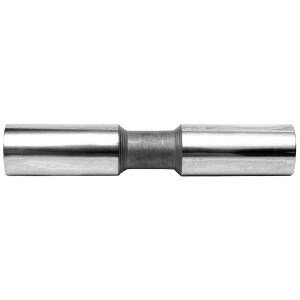

Deltronic Steel Class X Plug Gage Member .0248" to .1080" [.6300mm to 2.7425mm]

Brand: Deltronic
ID#: DEL-PLGX-0248-1080-MEMBER
|MFGID: DEL-PLGX-0248-1080-MEMBER
Your Price:
$17.19
QuantityPrice
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Cylindrical Plug Gage - Up To 4 Inch (+ $19.00)
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Every Class “X” Deltronic gage, throughout their entire range of sizes, is made to the same size and roundness tolerances. Tolerance: Inch +.000040"/-0 [Metric +0.0010mm/-0]. Roundness: Inch 0.000020" [Metric 0.0005mm]. Supplied with Certificate of Accuracy traceable to the National Institute of Standards and Technology. Made from heat treated steel to a hardness of Rockwell “C” 62-64. Each gage is lapped to approximately one microinch finish that creates a mirror-like surface with additional resistance to wear.

Specifications

  • Type:Tool Steel 62-64 Rc
  • Accuracy:Tolerance +.000040"/-0
  • Details:Certificate of Accuracy included
  • Specifications:Approximately one microinch finish
  • Roundness 0.000020" [Metric 0.0005mm]
  • Member Length 2 1/4"
