Hexagon Absolute Arm 7-Axis all-in-one measuring
Product Information
Description
The all-in-one solution for portable 3D measurement
The flagship of the Absolute Arm range, the Absolute Arm 7-Axis delivers tactile probing and non-contact scanning in a uniquely ergonomic package. It’s the clear choice for high-end portable measurement applications. With usability central to its design, this is an articulating measuring arm that can’t be beaten when it comes to ease of movement and measurement. All this adds up to a more productive arm that delivers high-accuracy results more quickly and easily than ever before.
Upgraded performance
The latest version of the 8th generation Absolute Arm offers improved accuracy, stability, and repeatability. The system's feedback keeps users aware of key factors that affect measurement results, such as vibration, displacement, tilt, and temperature.
Probing and scanning
High-accuracy probing and high-end scanning from the Absolute Scanner AS1 or AS1-XL. The Absolute Arm 7-Axis is a multifunctional tool that improves productivity through enhanced usability and versatility.
IP54 certification
The first portable measuring arm with an IP54 rating, functional in temperatures up to 45°C, perfect for challenging conditions.

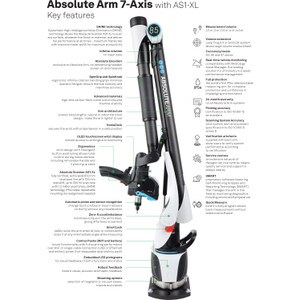

Configurable wrist
The wrist features an OLED display, interchangeable grips, probe and scanner mountings, and control buttons for efficient one-handed operation.
Advanced materials
Constructed with high-tech carbon-fiber tubes for strength and stability, ensuring reliable accuracy anywhere.
ISO certification
Probing accuracy certified to ISO 10360-12, full scanning accuracy certified to ISO 10360-8 Annex D with an Absolute Scanner AS1, AS1-XL, or RS5 Laser Scanner.
₁ Max permissible longitudinal error of measurement − according to ISO 10360-12:2016
| Accuracy (EUNI₁) | Arm sizes | Series | Protection class | Operating temperature | Certification | Weight |
|---|---|---|---|---|---|---|
| From 0.027 mm | 2.0m / 2.5m / 3.0m / 3.5m / 4.0m / 4.5m | 83 series – Entry level accuracy 85 series – Balance of value and accuracy 87 series – Ultimate for high-accuracy measurement | IP 54 | 5 to +45°C | ISO 10360-12:2016 (probing) | From 8.8 kg |
