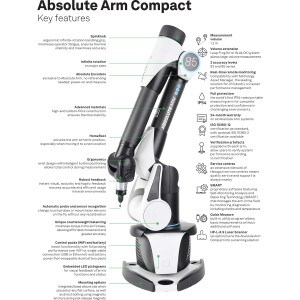

Hexagon Absolute Arm Compact small/medium parts
Product Information
Description
The world’s most accurate portable measuring arm
Fitting easily on a workshop table or under a CNC machine, the Absolute Arm Compact is the height of portability and usability. It boasts the same definitive features as the flagship Absolute Arm, from Absolute Encoders in every articulation joint that eliminate warm-up and referencing to Wi-Fi and battery operation options that allow easy repositioning and no messy cables across the workshop floor.
Built on an integrated base and innovative counterweight balance system, the Absolute Arm Compact is ready to go right out of the box – no warm-up, no waiting, no need to fix it to a work surface – just place it where you need it and start measuring. For quality control that demands fast and extremely accurate measurement, there is simply no better portable measuring arm on the market.
Integrated base
Integrated base and innovative counterweight balance system, the Absolute Arm Compact is ready to go right out of the box – no warm-up, no waiting, no need to fix it to a work surface – just place it where you need it and start measuring.
IP54 certification
The world’s first portable measuring arm with an IP54 rating, and guaranteed functionality in temperatures of up-to 45 degrees Celsius, the Absolute Arm is the perfect partner for measurement in even the most challenging environmental conditions.
Absolute portability
Light-weight design, an integrated base and an innovative counterweight balance system make the Absolute Arm Compact the perfect device for measurement anywhere, even within a CNC machining center.
Advanced materials
Built on a foundation of high-tech carbon-fiber tube construction, the Absolute Arm maintains strength and thermal stability under any environmental conditions, offering reliable accuracy whatever the environment.
| Accuracy (EUNI₁) | Arm sizes | Series | Protection class | Operating temperature | Certification | Weight |
|---|---|---|---|---|---|---|
| From 0.018mm | 1.2m | 83 series – Entry level measurement accuracy 85 series – Perfect balance between value for money and accurate measurement | IP 54 | 5 to +45°C | ISO 10360-12:2016 (for probing) ISO 10360-2 (optional) | From 12.1 kg |
₁ Maximum permissible longitudinal error of measurement − according to ISO 10360-12:2016
Specifications
- Details:
Info and Guides
OPTIONAL ACCESSORIES
| ID# | Product Name | Price |
|---|---|---|
| Absolute Scanner AS1 | Hexagon AS1 Absolute Scanner 3d laser | Quote |
| Absolute Scanner AS1-XL | Hexagon AS1-XL Absolute Scanner for big surfaces | Quote |
| GridLOK | Hexagon GridLOK system for the Absolute Arm | Quote |
| HP-L-8.9 | Hexagon HP-L-8.9 for Absolute Arm (PCMMs) | Quote |
| RS5 | Hexagon RS5 High-quality 3D laser scanner | Quote |
