Hexagon GridLOK system for the Absolute Arm

Description

Large-volume measurement

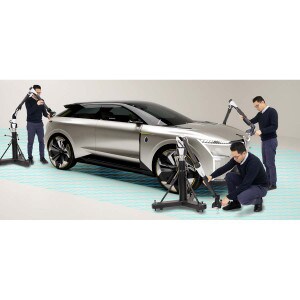

For more demanding applications, the GridLOK system creates an expanded measurement arena within which the arm can be repositioned anywhere with no undue loss of accuracy.

Measure More

Maintain Absolute Arm accuracy when measuring multiple or larger parts across a defined grid area (from 4 m x 6 m up to 60 m x 60 m).

Enhance Accuracy

Eliminate error accumulation from ‘leap-frog’ measurements, maintaining uniform accuracy through the entire expanded measurement volume (accuracy 50 microns plus accuracy of arm in use for a typical 4 m x 6 m system).

Boost Efficiency

No programme interruption or user input required when repositioning, even during a measuring sequence, greatly minimising training requirements.

Increase Flexibility

Avoid the limitations of fixed arm length – measure and align parts ordinarily out of the reach of the Absolute Arm.
