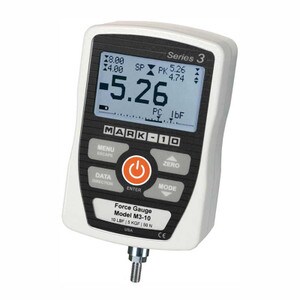

Mark-10 M3-100 Force Gauge

Brand: Mark-10
ID#: M3-100-MRK
|MFGID: M3-100
Free Shipping
Your Price:
$674.50
QuantityPrice
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Force Gauges: 0 to 100 lbs (+ $197.00)
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Mark-10 M3-100 Force gauge 100 lbF / 50 kgF / 500 N. Mark-10 M3-100 Force Gauge Series 3 digital force gauges are designed for tension and compression force testing in numerous applications from 0.12 lbF to 500 lbF -0.5 N to 2500 N-. The gauges feature a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for data collection purposes.

Specifications

  • Range:100 lbF / 50 kgF / 500 N
  • Type:Digital Force
  • Accuracy:±0.3% of full scale
  • Details:High-speed 2,000 Hz sampling rate
    USB data output of continuous or individual data points
    Ultra-compact size
    Large backlit graphic display
    Programmable set points with pass/fail indicators
    Live load bar graph with set point markers
    Peak readings and set points always displayed
    selectable units of measurement
    Configurable audio alarms and key tones

OPTIONAL ACCESSORIES

ID#Product NamePrice
AC1002-MRKMark-10 AC1002 Handle Grip for Series 5/4 Gages Double Grip $133.00
Free Shipping
AC1052-MRKMark-10 AC1052 Mounting Plate 0.12-500 lbF Capacities -0.5-2500 N- $57.00
Sale
Free Shipping
ES10-MRKMark-10 ES10 Manual Test Stand. Test Stand 100 lbF / 500 N $598.50
Free Shipping
ES20-MRKMark-10 ES20 Manual Test Stand. Test Stand 100 lbF / 500 N $703.00
Free Shipping

PRODUCT SERIES

ID#Product NamePrice
M3-012-MRKMark-10 M3-012 Force Gauge $1,197.00
Free Shipping
M3-025-MRKMark-10 M3-025 Force Gauge $831.25
Free Shipping
M3-05-MRKMark-10 M3-05 Force Gauge $831.25
Free Shipping
M3-10-MRKMark-10 M3-10 Force Gauge $674.50
Free Shipping
M3-100-MRKMark-10 M3-100 Force Gauge $674.50
Free Shipping
M3-2-MRKMark-10 M3-2 Force Gauge $674.50
Free Shipping
M3-20-MRKMark-10 M3-20 Force Gauge $674.50
Free Shipping
M3-200-MRKMark-10 M3-200 Force Gauge $831.25
Free Shipping
M3-5-MRKMark-10 M3-5 Force Gauge $674.50
Free Shipping
M3-50-MRKMark-10 M3-50 Force Gauge $674.50
Free Shipping
M3-500-MRKMark-10 M3-500 Force Gauge $714.59
Free Shipping
