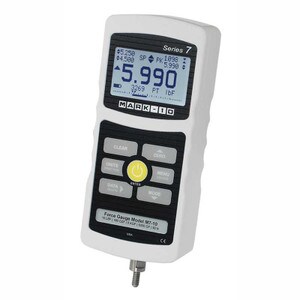

Mark-10 M7-20 Force Gauge
Brand: Mark-10
ID#: M7-20-MRK
Free Shipping
Product Information
Description
Mark-10 M7-20 Force Gauge 20 lbF / 320 ozF / 10 kgF / 10000 gF / 100 N. Mark-10 M7-20 Force Gauge Series 7 professional digital force gauges are designed with a number of sophisticated features for the most demanding tension and compression measurement applications, up to 500 lbF -2500 N-. The gauges feature ±0.1% accuracy and a blazingly fast, industry-leading sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests.Specifications
- Range:20 lbF / 320 ozF / 10 kgF / 10000 gF / 100 N
- Type:Digital Force
- Accuracy:±0.1% of full scale
- Details:High-speed 14,000 Hz sampling rate
Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
Individual data point memory for up to 5,000 readings, downloadable to a PC
USB, RS-232, Mitutoyo, and analog outputs
Sample break detection with auto functions, including stopping movement of an ESM301/ESM301L test stand
Automatic output / data storage / zeroing upon various event completions
1st / 2nd peak detection
5 units of measurement, plus Coefficient of Friction and user-defined unit with configurable name
Programmable footswitch command string
Programmable set points, with indicators and outputs
Averaging mode - calculates average readings over time
External trigger mode - for switch contact testing or remotely stopping display update
Password protection, configurable for individual keys and calibration
Features
Type text and format it using the toolbar.Info and Guides
OPTIONAL ACCESSORIES
| ID# | Product Name | Price |
|---|---|---|
| 09-1214-MRK | Mark-10 09-1214 Multi-function Cable Series 7/5/4 to ESM303 Test Stand | $128.25 Free Shipping |
| AC1051-MRK | Mark-10 AC1051 Footswitch for Series 7 / Model 7i | $190.00 Free Shipping |
| AC1052-MRK | Mark-10 AC1052 Mounting Plate 0.12-500 lbF Capacities -0.5-2500 N- | $57.00 Sale Free Shipping |
| ESM303-MRK | Mark-10 ESM303 Motorized Test Stand Vertical 300 lbF / 1.5 kN | $3,230.00 Free Shipping |
PRODUCT SERIES
| ID# | Product Name | Price |
|---|---|---|
| M7-012-MRK | Mark-10 M7-012 Force Gauge | $2,156.50 Free Shipping |
| M7-025-MRK | Mark-10 M7-025 Force Gauge | $1,862.00 Free Shipping |
| M7-05-MRK | Mark-10 M7-05 Force Gauge | $1,862.00 Free Shipping |
| M7-10-MRK | Mark-10 M7-10 Force Gauge | $1,695.75 Free Shipping |
| M7-100-MRK | Mark-10 M7-100 Force Gauge | $1,695.75 Free Shipping |
| M7-2-MRK | Mark-10 M7-2 Force Gauge | $1,695.75 Free Shipping |
| M7-20-MRK | Mark-10 M7-20 Force Gauge | $1,695.75 Free Shipping |
| M7-200-MRK | Mark-10 M7-200 Force Gauge | $1,862.00 Free Shipping |
| M7-5-MRK | Mark-10 M7-5 Force Gauge | $1,695.75 Free Shipping |
| M7-50-MRK | Mark-10 M7-50 Force Gauge | $1,695.75 Free Shipping |
| M7-500-MRK | Mark-10 M7-500 Force Gauge | $1,862.00 Free Shipping |
