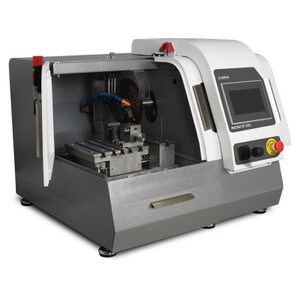

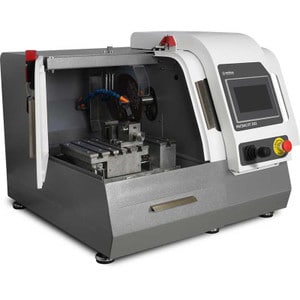

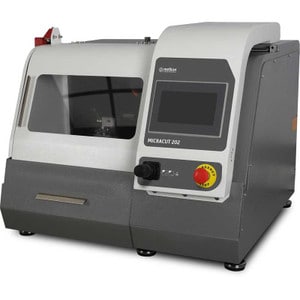

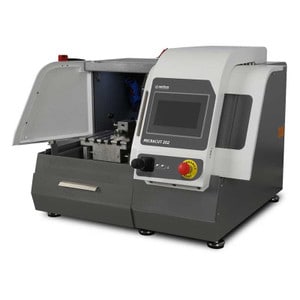

MetKon 1707 MICRACUT 202 Automatic High Speed Precision Cutter.
Brand: Metkon
ID#: 1707-MTK
Product Information
Description
Programmable with 7" HDMI touch screen control, with Siemens PLC control unit, with motorized cutting system, automatic or manual cutting modes, motorized precise grinding with 5 microns accuracy, accurate positioning of the specimen in X-axis with 5 microns.
- Cut-off Wheel Diameter: Up to Ø200 mm
- Cutting Capacity: Ø75 mm
- Disc Speed: 100 - 5000 RPM
- Cutting Feed Speed: 5-10000 μm/s
- Parallel Cutting in X-Axis: Yes
- X-Axis Positioning Range: 0-50 mm
- X-Axis Positioning Accuracy: 5 μm
- Cooling Unit: 4.5 Lt (integrated)
- Dimensions: 640 x 732 x 529h mm
- Weight: 198.42 lbs.
Specifications
- Details:
- Modern and sturdy design
- Extraordinary access for easy handling
- Ergonomic joystick control offers excellent application versatility
- Programmable with colored HMI touch screen controls
- Automatic cut-off wheel positioning
- Inbuilt recirculation coolant tank
Features
- Modern and sturdy design
- Extraordinary access for easy handling
- Ergonomic joystick control offers excellent application versatility
- Programmable with colored HMI touch screen controls
- Automatic cut-off wheel positioning
- Inbuilt recirculation coolant tank
