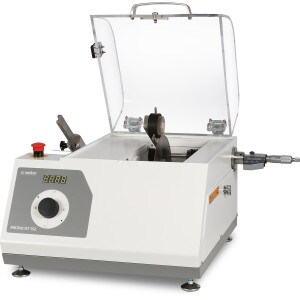

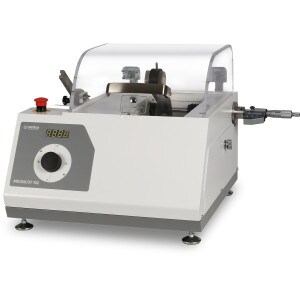

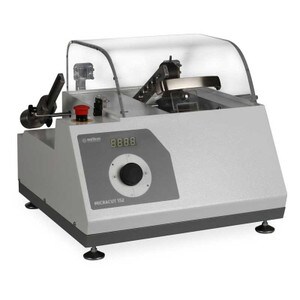

Metkon 1605 MICRACUT 152 Precision Cutter
Brand: Metkon
ID#: 1605-MTK
Product Information
Description
MICRACUT 152 precision cutters are used for precise and deformation-free cutting of “Metals, Ceramics, Electronic Components, Crystals, Composites, Biomaterials, Sintered Carbides, Minerals, etc.” MICRACUT 152 has its place in virtually any metallurgical, geological, electronics, research, biomedical or industrial laboratory. The applications are endless.- Disc Diameter, mm: Up to Ø175 mm
- Cutting Capacity: Ø50 mm
- Disc Speed: 50 - 1500 RPM
- Parallel Cutting in X-Axis: Yes
- X-Axis Positioning: 25 mm
- Cooling Unit: 850 ml (integrated)
- Dimensions: 510 x 430 x 340h mm
- Weight: 61.73 lbs.
Specifications
- Details:
- Modern and sturdy design
- Easy to use control panel with ergonomic turn-knob

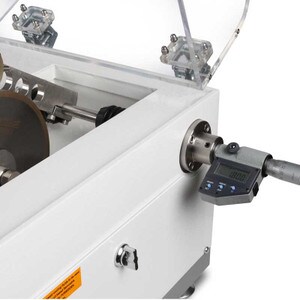

- Precise micrometer with digital readout
- Gravity feed system
- Automatic stop at the end of cut
- Transparent protection hood with magnetic safety switch
- Inbuilt recirculation coolant tank
Features
- Modern and sturdy design
- Easy to use control panel with ergonomic turn-knob Precise micrometer with digital readoutGravity feed systemAutomatic stop at the end of cutTransparent protection hood with magnetic safety switch
- Inbuilt recirculation coolant tank
