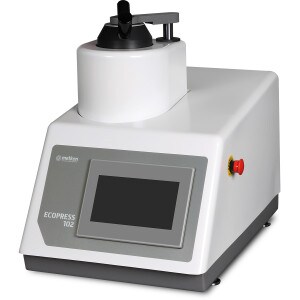

Metkon ECOPRESS 102 Programmable Automatic Mounting Press
Brand: Metkon
ID#: 2511-MTK
Product Information
Description

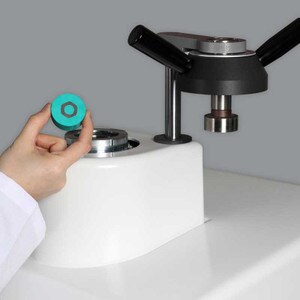

7" HMI touch screen control, with Siemens PLC control unit, programmable with colored LCD display, program based mounting sequences, electro hydraulic pressure (requires no air), pressure up to 300 bar, temperature up to 2000C, operation time up to 35:00 minutes, short cycle time, thermostatically controlled heating power of 1650W, automatic cooling cycle with three modes of cooling rates(standard cooling, slow cooling and based on time), programmable preheating and preloading, stand-by temperature, selectable mold sizes from 25 mm to 50 mm, easy to close bayonet closure, audible warning signal, ready for operation. 230 V, 1-phase, 50/60 Hz.Info and Guides
PRODUCT SERIES
| ID# | Product Name | Price |
|---|---|---|
| 2510-MTK | Metkon ECOPRESS 52 Automatic Mounting Press | $8,590.00 |
| 2511-MTK | Metkon ECOPRESS 102 Programmable Automatic Mounting Press | $10,149.00 |
| 2512-MTK | Metkon ECOPRESS 202 Programmable Automatic Mounting Press with Dual Cylinders | $16,783.00 |
