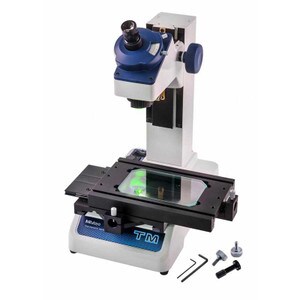

Mitutoyo 176-819A TM-1005B Microscope 4x2" / 100x50mm XY Stage Travel

Brand: Mitutoyo
ID#: 176-819A-MIT
|MFGID: 176-819A
Your Price:
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information


Mitutoyo TM-1005B, 176-819A Toolmaker's Microscope is compact optical measuring tool used for inspection and measurement of machined workpieces. The eyepiece section of the optical tube incorporates a vernier protractor. Angle measurement is performed easily by turning the protractor to align the cross-hair reticle with the workpiece image. Features a complete selection of interchangeable reticles. Both the transmitted and reflected illumination intensity can be adjusted to obtain optimal illumination intensity for the workpiece. Two XY stages with different travel ranges, 2" x 2" / 50mm x 50mm and 4" x 2" / 100mm x 50mm, are available. The TM-505 can output XY coordinate data with optional Digimatic Micrometer heads. Highly efficient two-dimensional data processing is available by connecting the Micrometer heads to an SPC tool. This model has a 4 x 2" / 100 x 50mm XY Stage Travel with a total magnification of 30X.


  • Range:4 x 2" / 100 x 50mm XY Stage Travel
  • Type:Toolmaker's
