Mitutoyo 500-156-30 AOS Absolute Caliper 200mm Range-SPC & OD Jaw

Brand: Mitutoyo
ID#: 500-156-30-MIT
|MFGID: 500-156-30
Your Price:
Add Calibration w/ Certificate?
  • No
  • Yes - A2LA Calibration Caliper: 6.1" to 18" (+ $37.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

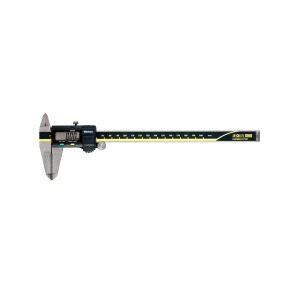

Mitutoyo 500-156-30 AOS Absolute Digimatic Caliper has a measuring range of 200mm with 0.01mm resolution. Includes SPC data output and an Outside diameter carbide-tipped measuring Jaw. Equipped with the exclusive AOS sensor technology which is a patented Advanced Onsite Sensor that offers improved measurement dependability by increasing resistance to harsh workshop conditions. Thiscaliper features electromagnetic inductive (AOS) sensor providing improved resistance to environmental conditions such as dirt, oil and water that can cause false readings, an increased battery life of 3.5 years under normal operation and Absolute (ABS) sensor that eliminates the necessity of setting the reference when the caliper is powered on. It is also fully compatible with existing Mitutoyo digimatic peripherals (SPC cables, U-Wave wireless transmitters, etc.)and are priced the same as the latest 500 Series ABS Caliper models. This model includes SPC Output, Outside Diameter Carbide Jaw and a Measuring Range of 200 mm with 0.01 mm Resolution.


  • Range:200 mm
  • Graduation:0.01 mm
  • Type:Digimatic Absolute AOS
  • Accuracy:+/- 0.02 mm
