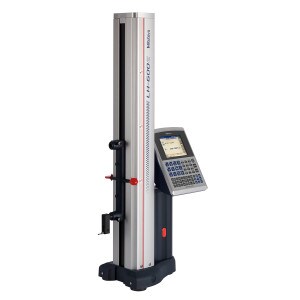

Mitutoyo 518-351A-21 LH-600E 2D Linear Height Gage

Brand: Mitutoyo
ID#: 518-351A-21-MIT
|MFGID: 518-351A-21
Sale
Sale Price:
$7,921.04
Prices and discounts good only while Supplies Last.
QuantityPrice

In Stock

Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Height Gage: Over 24 Inches (+ $165.00)
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

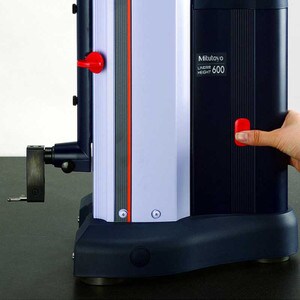

Mitutoyo LH-600E, 518-351A-21 Linear Height Gage has a measuring range (Stroke) of 0 - 38” (24") / 0 - 972mm (600mm). This model offers advanced semi-automatic performance for reliable and easy 2D measurement.. Features include excellent accuracy of (1.1+0.6L/600)um with 0.1um/0.5um resolution/repeatability and Perpendicularity (frontal) of 5um and straightness of 4um are guaranteed. The pneumatic full/semi-floating system allows adjustment of air-cushion height. Also basic statistical functions are provided, additionally, RS-232C/USB data output provides the option of evaluating measurement data externally with SPC software on a PC. It also features one-key operation for running a semi-automatic measurement and data entry is possible from a digimatic tool. Is equipped with a TFT LCD color display.

Specifications

  • Range:(Stroke) 0 - 38” (24") / 0 - 972mm (600mm)
  • Type:2D Linear
  • Accuracy:High Accuracy (1.1+0.6L/600)µm (L=Length of mm)
  • Resolution:Selectable Resolution: .000001”/.00001”/.0001”/.001” /0.0001mm/0.001mm /0.01mm/0.1mm
