Mitutoyo 544-116-1A LSM-9506 Laser Scan .02-2.36"/ 0.5-60mm

Brand: Mitutoyo
ID#: 544-116-1A-MIT
|MFGID: 544-116-1A
Your Price:
Add Calibration w/ Certificate?
  • No
  • Yes - A2LA Calibration Laser Based Micrometer (+ $167.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

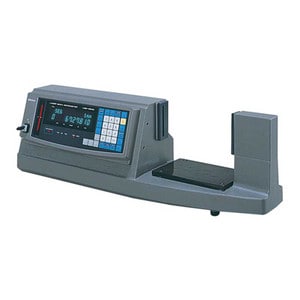

Mitutoyo 544-116-1A LSM-9506 Laser Scan Micrometer has a measuring range of .02-2.36"/ 0.5-60mm with a measuring area of .02 x 2.36"/ 5 x 60mm with a 1600/sec Scanning Rate. It is a bench top type, non-contact measuring system. Features a dual-axis LED display, multi limit Go/+/-NG tolerance judgement (up to 7 intervals) and 255 Edge designations can be detected. This laser micrometer also features RS232C Data Output.


  • Range:.02 x 2.36"/ 5 x 60mm
  • Type:Visible Semiconductor laser
  • Resolution:.000002 to .005" (0.00005 to 0.1mm) Selectable
