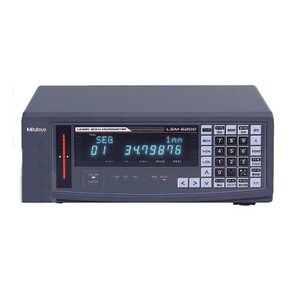

Mitutoyo LSM-6200 Standard Display Unit for Laser Scan Micrometer

Brand: Mitutoyo
ID#: 544-072A-MIT
|MFGID: 544-072A
Your Price:
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information


Mitutoyo LSM-6200, 544-072A Standard display unit is for Laser Scan micrometers. Features include a dual-display design setup that allows values to be continuously monitored. Also, two measurement value items can be displayed on the sub-display with the simultaneous measurement function. It allows for the segment measurement (7 segments max)or the edge measurement (1 to 255 edges) to be selected and the RS-232C interface and the I/O and analog interface are provided as standard. A statistical calculation function and abnormal data eliminating function are provided. The display unit has zero-setting, presetting, GO/+-NG judgement, multi-limit judgement, offset value setting and more!


  • Specifications:Standard, dual
