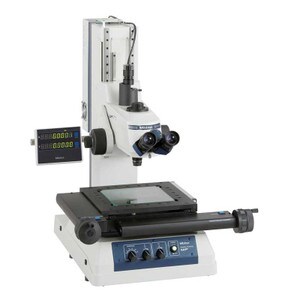

Mitutoyo MF-A2017D 176-863-10 Measuring Microscope 8x6.7"
Brand: Mitutoyo
ID#: 176-863-10-MIT
Free Shipping
Product Information
Description
Mitutoyo MF-A2017D 176-863-10 Measuring Microscope 8x6.7"-200x170mm XY 16.1x13.4" 410x342mm XY Stage Top Size - expandability, such as when used in combination with Mitutoyo's vision unit to boost its performance or data management on a PC, promises further improved measuring efficiency. Features include observation with a clear and flare-less erect image and a wide field of view. Measuring accuracy that is the highest in its class (and conforms to JIS B 7153). The reflected and transmitted illumination unit is selectable from a high-intensity LED or halogen bulb. The variable aperture diaphragm allows observation measurement while suppressing light diffraction. The quick-release mechanism is useful for moving the stage quickly when measuring workpieces that are large in size or quantity. Has a coarse, fine feed handle that is standard on both sides and allow precise focus and observation measurement regardless of handedness. Includes a high-magnification eyepiece that can observe up to 2000x. This model has a 8x6.7"-200x170mm XY Stage Travel Range, 16.1x13.4" 410x342mm XY Stage Top Size. Readout type is 2-axis.Specifications
- Range:8x6.7"-200x170mm XY Stage Travel Range, 16.1x13.4" 410x342mm XY Stage Top Size
- Type:Measuring
- Accuracy:XY-axis:(2.2+0.02L)µm,L = Measuring length(mm) when not loaded, JIS B 7153
- Resolution:.0001"/.00005"/.00001" / 0.001mm/0.0005mm/0.0001mm
