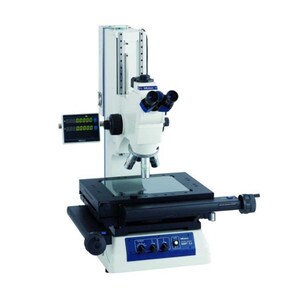

Mitutoyo MF-UA2017D 176-873-10 High-Power Multi-Function Microscope 8x6.7"

by Mitutoyo
ID#: 176-873-10-MIT
|MFGID: 176-873-10
Your Price:
$26,442.31
Quote Required
Specifications and/or Special Freight Requirements Apply
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Mitutoyo MF-UA2017D 176-873-10 High-Power Multi-Function Measuring Microscope 8x6.7in 200x170mm XY 0-8.7in 0-220mm Z-axis Travel - features observation with a clear and flare-less erect image and a wide field of view. Performs measuring accuracy that is the highest in its class (and conforms to JIS B 7153). Proven high-NA objectives from the FS optical system (long working distance type). Integration of metallurgical and measurement microscope functions provides high-resolution observation and high-accuracy measurement solution. Reflected or transmitted Illumination Unit is selectable from a high-intensity LED or halogen bulb. The Variable aperture diaphragm (reflected/transmitted) allows observation measurement while suppressing light diffraction. The quick-release mechanism is useful for moving the stage quickly when measuring workpieces that are large in size or quantity. It contains a high-magnification eyepiece making it able to observe up to 2000X. The design of this microscope also makes it low-noise. This model has a 8x6.7in 200x170mm XY Stage Travel Range and 0-8.7in 0-220mm Z-axis Travel Range.

Specifications

  • Range:8x6.7in 200x170mm XY Stage Travel Range, 0-8.7in 0-220mm Z-axis Travel Range
  • Type:Multi-Function
  • Accuracy:XY-axis(2.2+0.02L)µm L=Measuring length(mm) when not loaded JIS B 7153
  • Resolution:.0001"/.00005"/.00001" 0.001mm/0.0005mm/0.0001mm
