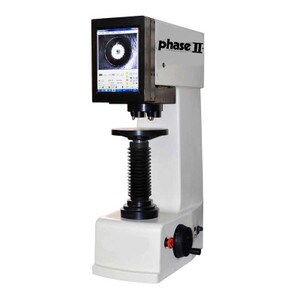

Phase II 900-357 Brinell Hardness Tester with Built-in Monitor

by Phase II
ID#: 900-357
|MFGID: 900-357
Your Price:
$52,878.60
Quote Required
Special Order
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Phase II 900-356 Tall Frame Digital Brinell Hardness Tester has Auto Z-Axis, Auto Load and Unload, Touch Screen monitor, instant readings.Load Cell driven system provides precise control of test force application, direct Touch Screen Controls, 3 Indentors and 2 Objectives covering all common Brinell scales.Engineered to obtain highly sensitive and accurate readingsPerfect for laboratories, workshops, tool rooms, inspection labs, etc.Measuring Range: 8-650HBW

Specifications

  • Specifications:Test Force kgf: 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
    Test Force N: 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420NTest Range 3.18?653HBW
    Loading Method Automatic (Loading-Dwell-Unloading)
    Hardness Reading Indentation Displaying and Automatic Measuring on Touch Screen
    Computer CPU: Intel I3?Memory: 2G?SSD: 32G
    Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBS, HBW
    Data Output USB Port, VGA Interface, Network Interface
    Turret Control Automatic Recognition and Shifting (Three Indenters, Two Objectives)
    Objective 1× ?2×
    Total Magnification 20× ?40×
    Resolution 1.25?m ?0.625?m
    Dwell Time 0~95s
    Max. Height of Specimen 260mm
