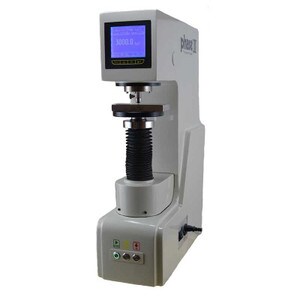

Phase II 900-358 Brinell Hardness Tester with Auto Z-Axis

by Phase II
ID#: 900-358
|MFGID: 900-358
Your Price:
Quote Required
Specifications and/or Special Freight Requirements Apply
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information


Phase II 900-357 Brinell Hardness Tester with Built-in Monitor has closed-loop technology. Fully automated test cycles. Press the START key once, the hardness tester will complete the entire test cycle automatically—1) sample elevation 2) major load application 3) Dwell Time 4) Unloading. Equipped with has Auto Z-Axis, and built-in touch screen PC performs the indentation measuring process automatically.


  • Specifications:Loads: 3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N),500Kgf (4900N), 250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N),100Kgf (980N), 62.5Kg (612.9N)
    Load dwell duration: 2s~99s, can be set and stored
    Tungsten Carbide Ball Indenter: : 10mm, 5mm, 2.5mm
    Measuring Range: 3.18HBW~58HBW
    Max measurable height: 230 mm
    Max measurable depth: 140 mm
