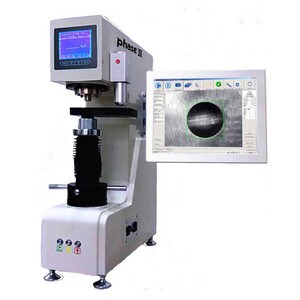

Phase II 900-359 Brinell Hardness Tester with Auto Z-Axis and CCD Video

Brand: Phase II
ID#: 900-359-PHT
|MFGID: 900-359
Your Price:
$17,662.37
Specifications and/or Special Freight Requirements Apply
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Hardness Testers: Brinnel - King (+ $192.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Phase II 900-358 Brinell Hardness Tester with Auto Z-Axis has closed-loop technology. Fully automated test cycles. Press the START key once, the hardness tester will complete the entire test cycle automatically‚ÄĒ1) sample elevation 2) major load application 3) Dwell Time 4) Unloading. Equipped with has Auto Z-Axis, CCD camera and built-in touch screen PC performs the indentation measuring process automatically.

Specifications

  • Specifications:Loads: 3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N),500Kgf (4900N), 250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N),100Kgf (980N), 62.5Kg (612.9N)
    Load dwell duration: 2s~99s, can be set and stored
    Tungsten Carbide Ball Indenter: : 10mm, 5mm, 2.5mm
    Measuring Range: 3.18HBW~58HBW
    Max measurable height: 230 mm
    Max measurable depth: 140 mm

PRODUCT SERIES

ID#Product NamePrice
900-331-PHTPhase II 900-331 Rockwell Analog Hardness Tester $2,413.10
900-331D-PHTPhase II 900-331D Rockwell Analog Hardness Tester w-Indicator Upgrade $3,072.71
900-332-PHTPhase II 900-332 Tall Rockwell Analog Hardness Tester $4,721.76
900-332D-PHTPhase II 900-332D Tall Rockwell Analog Hardness Tester w-Indicator Upgrade $5,381.37
900-345-PHTPhase II 900-345 Rockwell Superficial Analog Hardness Tester $3,292.58
900-345D-PHTPhase II 900-345D Rockwell Superficial Analog Hardness Tester w-Digital Indicator Upgrade $4,156.88
900-346-PHTPhase II 900-346 Rockwell Superficial Digital Hardness Tester $8,946.03
900-355-PHTPhase II 900-355 Brinell Hardness Tester w-Load Cell Technology $7,650.36
900-356-PHTPhase II 900-356 Tall Frame Digital Brinell Hardness Tester $12,950.84
900-357-PHTPhase II 900-357 Brinell Hardness Tester with Built-in Monitor $51,821.03
900-358-PHTPhase II 900-358 Brinell Hardness Tester with Auto Z-Axis $12,950.84
900-359-PHTPhase II 900-359 Brinell Hardness Tester with Auto Z-Axis and CCD Video $17,662.37
900-366-PHTPhase II 900-366 Tall Frame Digital Rockwell Hardness Tester $12,426.68
900-367-PHTPhase II 900-367 Load Cell Rockwell Hardness Tester $8,239.30
900-375-PHTPhase II 900-375 Twin Rockwell Superficial Analog Hardness Tester $4,831.68
900-384-PHTPhase II 900-384 Twin Rockwell Superficial Motorized Hardness Tester $12,245.29
900-387-PHTPhase II 900-387 Twin Digital Rockwell Superficial Motorized Hardness Tester $10,643.37
900-388-PHTPhase II 900-388 Fully Automated Twin Rockwell Superficial Hardness Tester Z -Axis $15,306.61
900-389-PHTPhase II 900-389 Fully Automated Twin Rockwell Superficial Hardness Tester Z -Axis $12,950.84
900-390A-PHTPhase II 900-390A Micro Vickers Hardness Tester with Manual Software $8,946.03
900-390B-PHTPhase II 900-390B Micro Vickers Hardness Tester with Auto Software $10,123.92
900-391A-PHTPhase II 900-391A Micro Vickers Hardness Tester with Auto Turret $10,123.92
900-391B-PHTPhase II 900-391B Micro Vickers Hardness Tester with Auto Turret $11,301.80
900-391C-PHTPhase II 900-391C Micro Vickers Hardness Tester with Auto Turret $10,595.06
900-391D-PHTPhase II 900-391D Micro Vickers Hardness Tester with Auto Turret $11,772.96
900-391E-PHTPhase II 900-391E Micro Vickers Hardness Tester with Auto Turret $29,441.22
900-392A-PHTPhase II 900-392A Micro Vickers Knoop Hardness Tester Manual Software $21,902.76
900-392B-PHTPhase II 900-392B Micro Vickers Knoop Hardness Tester Auto Software $23,080.65
900-392C-PHTPhase II 900-392C Micro Vickers Knoop Hardness Tester with Auto Turret $22,373.92
900-392D-PHTPhase II 900-392D Micro Vickers Knoop Hardness Tester with Auto Turret $23,551.80
900-392E-PHTPhase II 900-392E Micro Vickers Knoop Hardness Tester with Auto Turret $41,220.06
900-398A-PHTPhase II 900-398A Digital Macro Vickers Hardness Tester with Manual Software $12,950.84
900-398B-PHTPhase II 900-398B Digital Macro Vickers Hardness Tester with Auto Software $14,364.30
900-410-PHTPhase II 900-410 Digital Rockwell Hardness Tester with Touch Screen $5,649.13
900-415-PHTPhase II 900-415 Digital Rockwell Hardness Tester with Load Cell and Touch Screen $6,591.44
900-420-PHTPhase II 900-420 Rockwell Superficial Digital Hardness Tester with Touch Screen $7,533.75
900-440-PHTPhase II 900-440 Twin Rockwell Superficial Hardness Tester with Load Cell and Touch Screen $11,302.98
900-505-PHTPhase II 900-505 Fully Automated Micro Vickers Hardness Tester $47,109.49
900331-9500Phase II 900331-9500 Digital Indicator Upgrade for Rockwell Hardness Tester $585.00
