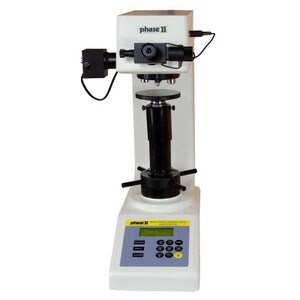

Phase II 900-398A Digital Macro Vickers Hardness Tester with Manual Software

by Phase II
ID#: 900-398A
|MFGID: 900-398A
Your Price:
$13,215.14
Quote Required
Specifications and/or Special Freight Requirements Apply
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Phase II 900-392E Micro Vickers Knoop Hardness Tester with Auto Turret is our macro-vickers hardness tester, covering the load range from 1kg to 50kg, with digital technology. An advanced line of Macro Vickers hardness testers which are state-of-the-art, precise testing systems suitable for hardness analysis of metallic specimens in metallography laboratories or production environments. Model No. 900?398A Includes Video cam, adapter and manual measurement software.Designed for the accurate hardness testing of small precision parts, thin materials, case hardened layers and all sorts of steel components. Conforming to ASTM E-384-92 vickers hardness testers standards, the 900-398 digital vickers hardness tester will offer unmatched repeatability. A perfect rugged performer suited for any environment, the Phase II vickers hardness testers are offered with a 5 year warranty and free lifetime technical support.The 900-398 Vickers Hardness Tester which includes precision video and measurement software package is engineered to produce a clear indentation and a more precise measurement. By means of a load cell, closed circuit system for control, the CPU controls testing force to load-dwell-unload, allowing for the highest degree of accuracy. The large LCD shows the measuring methods, the testing force, the indentation length, hardness value, the dwell time of the testing force as well as the number of the measurement on its screen.All information such as diagonal lines length of indentation, hardness values, data statistics and hardness conversions can be displayed on the LCD as well as your laptop or PC.

Specifications

  • Specifications:Test Forces: 9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 249.2, 490.3 N 1, 2, 2.5, 3, 5, 10, 20, 30, 50 kgf
    Carriage Control: automatic loading - holding?up of the load - unloading)
    Amplification of the Microscope: 100 ×, 200 ×
    Dwell Time of the Test Force: (0?60)s
    Min. Graduation Value of the Testing Drum Wheel: 0.125µm
    Testing Field: 1HV—2967HV
    Lens Indentor Switch: With Manual Turret
    Output: Built?in Mini Printer RS?232
    Max height of the specimen : 170 mm
    Max width of the specimen : 130mm
    Objective: 10x, 20x, 40x selectable
    Light source: cold light source
