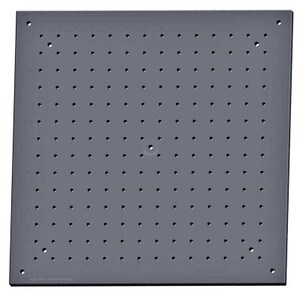

PrymeFix I32-PRY-STD-400400 I32 Aluminum 1/4-20 Insert (16 x 16)

Brand: PrymeTech
ID#: I32-PRY-STD-400400-PRY
|MFGID: I32-PRY-STD-400400
Your Price:
$964.68
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Universal Aluminum Inserts can be used for fixturing with both CMM’s and Vision Systems. Available in 3 sizes each with a 1″ spaced Complete Hole Pattern. A Calibration Sphere can be inserted to any of the 9 different M8 holes across the insert. Steel bars along the perimeter allow the insert to snap into all Prymefix Corners.

Features

  • 16" x 16" ¼-20 Threaded Hole Pattern (1x1 spacing)
  • M8 Holes for Calibration Sphere
  • Numeric Engraving vertically
  • Text Engraving horizontally
  • Steel bars allow for magnetic contact

Info and Guides

OPTIONAL ACCESSORIES

ID#Product NamePrice
A56-PRY-STD-005-PRYPrymeFix A56-PRY-STD-005 A56 12 MM Calibration Sphere $781.65
A56-PRY-STD-006-PRYPrymeFix A56-PRY-STD-006 A56 25.4 MM Calibration Sphere $667.86
KIT-PRY-MSS-001-PRYPrymeFix KIT-PRY-MSS-001 Small Component Kit $677.76
KIT-PRY-MSS-002-PRYPrymeFix KIT-PRY-MSS-002 Medium Component Kit $841.02
KIT-PRY-MSS-003-PRYPrymeFix KIT-PRY-MSS-003 Large Component Kit $1,632.55
