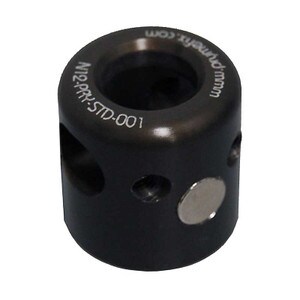

PrymeFix N12-PRY-STD-001 N12 Micro Corner Puck (1 x 1)
Brand: PrymeTech
ID#: N12-PRY-STD-001-PRY
Product Information
Description
Magnetic Corner Pucks can be mounted on a guide rail system or screwed directly onto a machine stage. Every puck has magnets on 2 sides allowing them to snap to all PrymeFix Inserts (both aluminum and acrylic). When mounted onto a guide rail system, pucks can be moved to any custom position. Once positioned, the set screws can be tightened to lock the Corner Puck in place.Features
- Dimensions: 1" x 1"
- Magnetic hold
- Fully adjustable along guide rails
- Can mount directly to measurement system
- Mounting kit included
Info and Guides
OPTIONAL ACCESSORIES
| ID# | Product Name | Price |
|---|---|---|
| N13-375-006-PRY | PrymeFix N13-375-006 N13 Guide Rail (0.375 x 6) | $11.31 |
| N13-375-012-PRY | PrymeFix N13-375-012 N13 Guide Rail (0.375 x 12) | $22.62 |
| N13-375-024-PRY | PrymeFix N13-375-024 N13 Guide Rail (0.375 x 24) | $33.93 |
| N13-375-036-PRY | PrymeFix N13-375-036 N13 Guide Rail (0.375 x 36) | $47.12 |
| N13-375-XXX-PRY | PrymeFix N13-375-XXX N13 Guide Rail (0.375 x Custom) | $75.38 |
| N13-PRY-STD-001-PRY | PrymeFix N13-PRY-STD-001 N13 Corner Adaptor (1.5 x 1.5) | $89.52 |
| N13-PRY-STD-002-PRY | PrymeFix N13-PRY-STD-002 N13 Corner Adaptor (1 x 3) | $103.65 |
PRODUCT SERIES
| ID# | Product Name | Price |
|---|---|---|
| N12-PRY-STD-001-PRY | PrymeFix N12-PRY-STD-001 N12 Micro Corner Puck (1 x 1) | $94.23 |
| N12-PRY-STD-002-PRY | PrymeFix N12-PRY-STD-002 N12 Small Corner Puck (1 x 1.5) | $113.07 |
| N12-PRY-STD-003-PRY | PrymeFix N12-PRY-STD-003 N12 Medium Corner Puck (1 x 2) | $127.21 |
| N12-PRY-STD-004-PRY | PrymeFix N12-PRY-STD-004 N12 Large Corner Puck (1 x 3) | $141.35 |
