Q-Mark AFG-1030-SN M5 1 mm Silicon Nitride tipped, Cylinder Stylus, L 30.0 mm, EWL 20 mm

Brand: Q-Mark
ID#: AFG-1030-SN-QMK
Your Price:
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

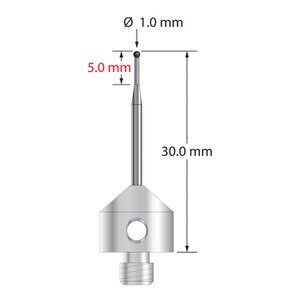

M5 stylus with 1.0 mm diameter silicon nitride ball, tapered carbide stem, and 11.0 mm diameter x 10.0 mm long stainless steel base. Minor stem diameter is 0.7 mm, major diameter is 1.5 mm. Overall stylus length is 30.0 mm. Stylus weight is 5.77 grams. Compare to Zeiss 626115-0103-030.


  • Details:Thread-Connector: M5
    Ball Diameter: 1 mm
    Tip Material: Silicon Nitride
    Effective Work Length: 20 mm
    Stem Material: Tungsten Carbide
    Base Material: Steel
    Base Diameter: 11.0 mm
