Q-Mark TM3-0524-TX M3 XXT 0.5 mm Ruby tipped, Cylinder Stylus, L 24.0 mm, EWL 15 mm
Brand: Q-Mark
ID#: TM3-0524-TX-QMK
Product Information
Description

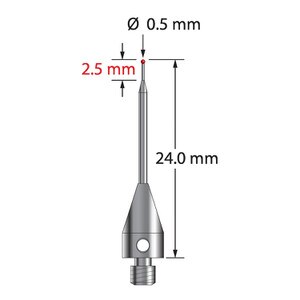

M3 stylus with 0.5 mm diameter ruby ball, tapered carbide stem, and 5.0 mm diameter x 9.0 mm long titanium base. Minor stem diameter is 0.3 mm, major diameter is 1.0 mm. Overall stylus length is 24.0 mm. Stylus weight is 0.57 gram. Compare to Zeiss 626113-0051-024.Specifications
- Details:Thread-Connector: M3 XXT
Ball Diameter: 0.5 mm
Tip Material: Ruby
Effective Work Length: 15 mm
Stem Material: Tungsten Carbide
Base Material: Titanium
Base Diameter: 5.0 mm
