Q-Mark TM3-2020-B M3 2 mm Ruby tipped, Spherically Ended Stylus, L 20.0 mm, EWL 15 mm
Brand: Q-Mark
ID#: TM3-2020-B-QMK
Product Information
Description

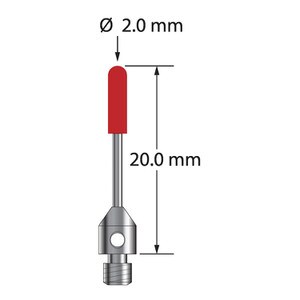

M3 cylinder stylus with 2.0 mm diameter x 7.2 mm long ruby cylinder, 1.0 mm diameter carbide stem, and 4.0 mm diameter x 5.0 mm long stainless steel base. Overall stylus length is 20.0 mm. Stylus weight is 0.62 gram. Compare to Zeiss 602030-8107-000 and Mitutoyo K651155. Cylinder styli are used for edge probing, like those found on stampings or sheet metal parts. They are not recommended for high accuracy work because their form is less precise than a sphere. Please contact us with any questions about calibrating or using cylinder styli.Specifications
- Details:Thread-Connector: M3
Ball Diameter: 2 mm
Tip Material: Ruby
Effective Work Length: 15 mm
Stem Material: Tungsten Carbide
Base Material: Steel
Base Diameter: 4.0 mm
