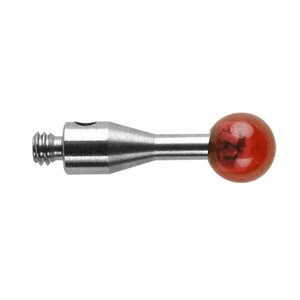

Renishaw A-5000-4154 M2 Ø4 mm ruby ball, stainless steel stem, L 10 mm, EWL 10 mm

Specifications

• Details:
  Connection Type In: M2
  Ø Sphere (DK): 4
  Length (L): 10
  Measure Length: 10
  Stylus Type: Straight Stylus
  Tip Material: Ruby
  Stem Material: Steel

  Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A stainless steel stem offers excellent rigidity and is ideal for applications where weight is not critical. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. REVO recommended stylus, with RSH175, RSH250, RHS350 and RSH450 module.
