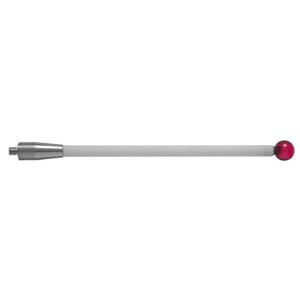

Renishaw A-5000-7796 M4 Ø8 mm ruby ball, ceramic stem, L 100 mm, EWL 100 mm
Brand: Renishaw
ID#: A-5000-7796-REN
Product Information
Description
Renishaw A-5000-7796 M4 Ø8 mm ruby ball, ceramic stem, L 100 mm, EWL 100 mmSpecifications
- Details:
Connection Type In: M4
Ø Sphere (DK): 8
Length (L): 100
Measure Length: 100
Stylus Type: Straight Stylus
Tip Material: Ruby
Stem Material: Ceramic
Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A ceramic stem is lightweight yet very stiff and offers built-in crash protection. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. Equivalent to Mitutoyo part number: K651184. Equivalent to Q-Mark part number: TM4-80104-C.
