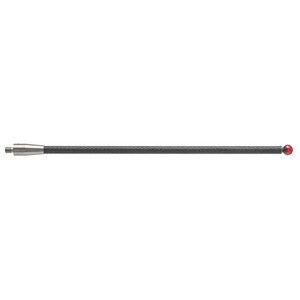

Renishaw A-5003-1358 M4 Ø6 mm ruby ball, carbon fibre stem, L 100 mm, EWL 88.5 mm

Specifications

• Details:
  Connection Type In: M4
  Ø Sphere (DK): 6
  Length (L): 100
  Measure Length: 88.5
  Stylus Type: Straight Stylus
  Tip Material: Ruby
  Stem Material: Carbon Fiber

  Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A carbon fibre stem is very lightweight and ideal for applications where weight is critical. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.
