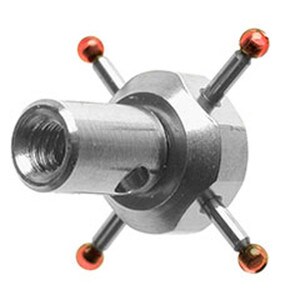

Renishaw A-5003-4788 M2 4 ball star, Ø1 mm ruby balls, 20 mm span

Specifications

• Details:
  Connection Type In: M2
  Ø Sphere (DK): 1
  Stylus Type: Star Stylus
  Tip Material: Ruby

  This multi-tip star stylus can be used where contact with different surfaces is needed without changing the stylus. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts. Equivalent to Q-Mark part number: STR2-1020
