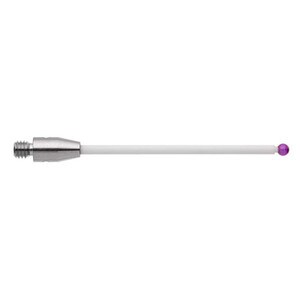

Renishaw A-5004-3646 M3 Ø2 mm ruby ball, ceramic stem, L 40 mm, EWL 32.5 mm

Specifications

• Details:
  Connection Type In: M3
  Ø Sphere (DK): 2
  Length (L): 40
  Measure Length: 32.5
  Stylus Type: Straight Stylus
  Tip Material: Ruby
  Stem Material: Ceramic

  Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A ceramic stem is lightweight yet very stiff and offers built-in crash protection. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.
