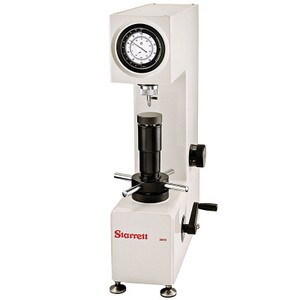

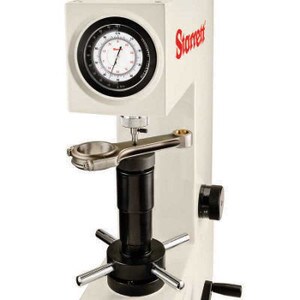

Starrett 3815 Twin Analog Hardness Tester, 6.0"/15.2mm, 26 x 18.2 x 9.4"/66 x 46.2 x 23.9mm, 5.5"/14mm
Brand: Starrett
ID#: 3815-STR
Product Information
Description
Twin Analog Hardness Tester features a state-of-the-art design and rugged construction and engineered to provide highly sensitive, accurate readings and excellent repeatability in all Rockwell and Superficial Rockwell hardness scales. Ideal for heat treatment facilities, tool rooms, workshops, laboratories and inspection labs. Includes a diamond conical indentor, 1/16" ball indentor, HRC, HRB, HR15N, HR30N and HR45T test blocks, 5.87" (150mm) test table, 2.5" (63mm) flat anvil, standard vee anvil, accessory case and dust cover.Specifications
- Details:
- Made in America: No
- Results Display: Dial
Features
- Direct analog dial reading
- Advanced design provides Rockwell and Rockwell Superficial testing
- Easy to operate
- Engineered to provide highly sensitive and accurate readings
- Tests Rockwell Scales: A, B, C, D, E, F, G, H, K, L, M
- Tests Superficial Rockwell Scales: HR15N, HR15T, HR30N, HR30T, HR45N, HR45Ts
- Major Load: 60/100/150 Kgf
- Maximum Test Height: 6.0" (15.2mm)
- Minor Load: 10 Kgf Minor Load - Superficial 3 Kgf
- Results Display: Dual Scale Dial
- Test Force Application: Dead Weight
- Test Force Control: Manual
- Throat Depth: 5.5" (14mm)
- Unit Height/Width/Depth: 26.0" (66mm) - 18.2" (46.2mm) - 9.4" (23.9mm)
- Unit Weight: 250 lbs (113kg)
