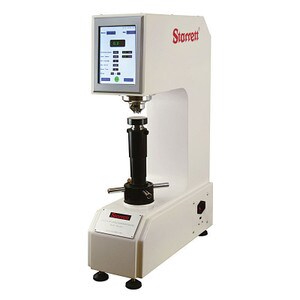

Starrett 3832 Digital Rockwell Hardness Tester with Touchscreen - Closed Loop Load Cell

Brand: Starrett
ID#: 3832-STR
|MFGID: 3832
Your Price:
$8,300.00
QuantityPrice
Add Calibration w/ Certificate?
No
  • No
  • Yes - Contact Me With A Quote
Request Info
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled Touch Screen with USB output. The 3832 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the regular Rockwell hardness scales. Accessories Included: C-scale Diamond Indenter, 1/16" Ball Indenter, 3- HRC test Blocks, 1- HRB Test Block, Test Table 5.87" (150mm), Flat Anvil 2.5" (63mm), Std. V- Anvil, Dust Cover, Accessory Case.

Specifications

  • Details:
    • Made in America: No
    • Results Display: Digital

Features

  • Major Load: 60 Kgf, 100 Kgf, 150 KGF
  • Minor Load: 10 Kgf
  • Results Display: Hi Def LCD Digital Readout
  • Test Force Application: Load Cell Closed Loop
  • Test Force Control: Motorized
  • Throat Depth: 7.8"
  • Unit Height/Width/Depth: 31", 8", 22"
  • Unit Weight: 175 lbs

Info and Guides

PRODUCT SERIES

ID#Product NamePrice
3814-STRStarrett 3814 Analog Bench Hardness Tester, 6.69"/169.9mm, 30 x 8.5 x 20"/762 x 216 x 508mm, 6.6"/168mm $4,439.00
3815-STRStarrett 3815 Twin Analog Hardness Tester, 6.0"/15.2mm, 26 x 18.2 x 9.4"/66 x 46.2 x 23.9mm, 5.5"/14mm $8,756.00
3818-STRStarrett 3818 Digital Motorized Brinell Hardness Tester, Load Cell Driven System, Measuring Range: 8-650HBW $4,742.00
3823-STRStarrett 3826 Digital Twin Rockwell-Superficial Rockwell Hard Tester with Dolphin Nose, Touchscreen, Load Cell $17,792.00
3824-STRStarrett 3824 Digital Rockwell - Superficial Rockwell Fully Automatic Hardness Tester 67607 $21,352.00
3825-STRStarrett 3825 Digital Motorized Brinell Hardness Tester $11,860.00
3831-STRStarrett 3831 Digital Rockwell Hardness Tester with Touchscreen $7,115.00
3832-STRStarrett 3832 Digital Rockwell Hardness Tester with Touchscreen - Closed Loop Load Cell $8,300.00
3833-STRStarrett 3833 Digital Superficial Rockwell Hardness Tester with Touchscreen - Closed Loop Load Cell $10,673.00
3834-STRStarrett 3834 Digital Twin Rockwell - Superficial Rockwell Hardness Tester with Touchscreen - Closed Loop Load Cell $15,419.00
3840A-STRStarrett 3840A Micro Vickers Hardness Tester With Digicam - Basic Manual Software $12,605.00
3840B-STRStarrett 3840B Micro Vickers Hardness Tester With Digicam - Auto Software $13,751.00
3841A-STRStarrett 3841A Micro Vickers Hardness Tester with Video cam, adapter and manual measurement software 02053 $13,293.00
3841B-STRStarrett 3841B Micro Vickers Hardness Tester with Video cam, adapter and Auto-Measurement software 02054 $14,439.00
3841C-STRStarrett 3841C Micro Vickers Hardness Tester with Video cam, adapter and Turret control w/manual measurement software $13,751.00
3841D-STRStarrett 3841D Micro Vickers Hardness Tester with Video cam, adapter and Turret control w/ Auto-Measurement software 02056 $14,897.00
3842A-STRStarrett 3842A Macro Vickers Hardness Tester with Auto-Turret, Video cam, adapter and manual measurement software 02057 $16,044.00
3842B-STRStarrett 3842B Macro Vickers Hardness Tester with Auto-Turret, Video cam, adapter and Auto-Measurement software $16,732.00
