Starrett 714.1EFLZ Digital Interchangeable Anvil Micrometer, Friction Thimble, SPC Output, .0001", 16-20" Range

Brand: Starrett
ID#: 714.1EFLZ-STR
Your Price:
Add Calibration w/ Certificate?
  • No
  • Yes - Contact Me With A Quote
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

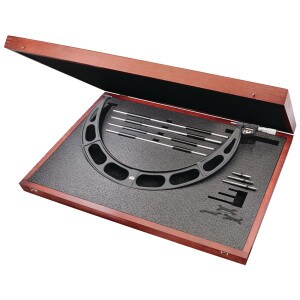

Starrett 714.1EFLZ Interchangeable Anvil Micrometer 16-20" Range with output, Inch Grads, Friction Thimble, Spindle Lock, Shell and Thimble. The newly designed 714.1 series is very popular in machine or automotive repair shops and for all applications requiring a single micrometer with range greater than 1". Each micrometer is equipped with a series of easily interchangeable anvils, thus providing the full range in steps of 1" or 25mm with a single micrometer. Suitable wrenches are furnished to make necessary adjustments. The balanced and tapered frame provides comfortable and accurate measuring and gives the right feel during use.


  • Range:Micrometer 16-20" Range
  • Type:Sets & Kits
  • Specifications:• Equipped with an RS232 output - ideal for use with DataSure Wireless Data Collection System• Starrett no-glare satin chrome finish on thimble and sleeve• Large, easy-to-read .275" (7mm) tall characters, high contrast LCD digital readout• Extremely hard and stable one-piece spindle• Auto Off after 20 minutes of nonuse• Inch-millimeter conversion on English versions• Smooth friction thimble for uniform pressure• Measurement HOLD button• Zero at any position• Retain and return to true zero reading• Spindle lock• Data Output• Resolution: .00005" (0.001mm)• Accuracy +--.0001" (+--0.002mm)• PRESET button to install any reading at any position• Ability to set minimum and maximum limits
