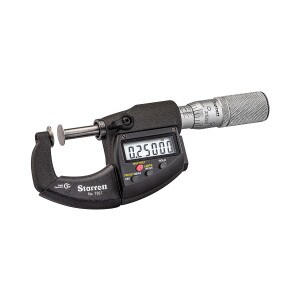

Starrett 756.1FL-1 Disc-type Micrometer 0-1" IP67 with Output

by Starrett
ID#: 756.1FL-1-STR
|MFGID: 756.1FL-1
Your Price:
$524.04
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Micrometer-Non (Ball, Point, Blade, Disc, Indicating) (+ $35.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Starrett 756.1FL-1 Disc-type Micrometer 0-1" IP67 with Output . The newly designed 756.1 is used to measure the thickness of work sections such as ribs, lands, fins, cutting edges on form tools, and chordal thickness of gear teeth.Because of their large anvil and spindle faces, the 1"-25mm sizes are also usefulfor measuring the thickness of sheet materials like paper, cardboard, rubber, andplastics. Now with IP67 level of protection.The balanced and tapered frame provides comfortable and accurate measuring and gives the right feel during use.

Specifications

  • Range:1 Disc-type Micrometer 0-1"
  • Specifications:• IP67 protection against coolants, water, chips, dust and dirt• Equipped with an RS232 output - ideal for use with DataSure Wireless Data Collection System• Starrett no-glare satin chrome finish on thimble and sleeve• Large, easy-to-read .275" (7mm) tall characters, high contrast LCD digital readout• Extremely hard and stable one-piece spindle• Auto Off after 20 minutes of nonuse• Inch-millimeter conversion on English versions• Smooth friction thimble for uniform pressure• Measurement HOLD button• Zero at any position• Retain and return to true zero reading• Spindle lock• Data Output• Resolution: .00005" (0.001mm)• Accuracy +--.0001" (+--0.002mm)• PRESET button to install any reading at any position• Ability to set minimum and maximum limits
