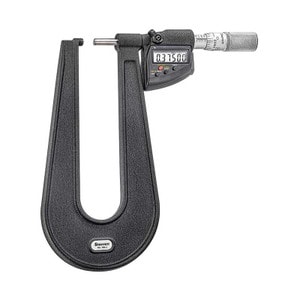

Starrett 764.1AXFL Sheet Metal Micrometer 0-1" Round Anvil Deep Throat

by Starrett
ID#: 764.1AXFL-STR
|MFGID: 764.1AXFL
Your Price:
$510.20
  • Retail Price: $517.00
  • Your Savings: 6.800000000000011
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

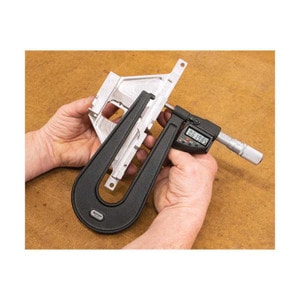

Starrett 764.1AXFL Sheet Metal Micrometer 0-1" Round Anvil Deep Throat . The newly deigned 764.1 micrometer reaches over the edge of sheet metal to take measurements away from the edge toward the center. Also for gaging jobs where a deep throat micrometer is needed. Rounded anvil gives a point of contact for more accurate gaging; flat anvil also available. The balanced and tapered frame provides comfortable and accurate measuring and gives the right feel during use.

Specifications

  • Specifications:• Equipped with an RS232 output - ideal for use with DataSure Wireless Data Collection System• Starrett no-glare satin chrome finish on thimble and sleeve• Large, easy-to-read .275" (7mm) tall characters, high contrast LCD digital readout• Extremely hard and stable one-piece spindle• Auto Off after 20 minutes of nonuse• Inch-millimeter conversion on English versions• Smooth friction thimble for uniform pressure• Measurement HOLD button• Zero at any position• Retain and return to true zero reading• Spindle lock• Data Output• Resolution: .00005" (0.001mm)• Accuracy +--.0001" (+--0.002mm)• PRESET button to install any reading at any position• Ability to set minimum and maximum limits
