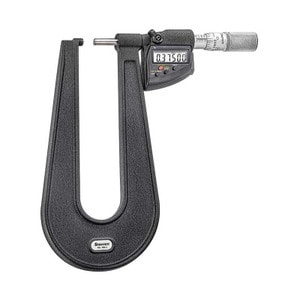

Starrett 764.1MEAXFL Sheet Metal Micrometer 25mm Round Anvil Deep Throat

by Starrett
ID#: 764.1MEAXFL-STR
|MFGID: 764.1MEAXFL
Your Price:
$548.00
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Micrometer-Non (Ball, Point, Blade, Disc, Indicating) (+ $38.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Starrett 764.1MEAXFL Sheet Electronic Multi-Anvil Micrometer is a full-featured precision measuring tool built with customary Starrett quality and workmanship. The 764 series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings. Equipped with rounded anvils that gives a point contact for more accurate gaging. Includes 6" Throat Depth with Standard Inch Graduations on Shell and Thimble. Its no-glare satin chrome finish minimizes annoying surface glare under bright lights indoors or filters out UV light. This model features 0.00005"in & 0.001mm resolution and 0-1"in & 0-25mm measuring range. Starrett electronic micrometers guarantee a precise measurement at every position each and every time. 150mm Throat Depth, 0-25mm (0-1") Range, Round Anvil, with Output, Carbide Faces.

Specifications

  • Specifications:• Equipped with an RS232 output - ideal for use with DataSure Wireless Data Collection System• Starrett no-glare satin chrome finish on thimble and sleeve• Large, easy-to-read .275" (7mm) tall characters, high contrast LCD digital readout• Extremely hard and stable one-piece spindle• Auto Off after 20 minutes of nonuse• Inch-millimeter conversion on English versions• Smooth friction thimble for uniform pressure• Measurement HOLD button• Zero at any position• Retain and return to true zero reading• Spindle lock• Data Output• Resolution: .00005" (0.001mm)• Accuracy +--.0001" (+--0.002mm)• PRESET button to install any reading at any position• Ability to set minimum and maximum limits
