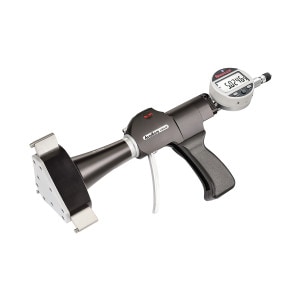

Starrett 781BXTZ-5 Electronic Bore Gage Set 4-5" and 100-125 mm Range

by Starrett
ID#: 781BXTZ-5-STR
|MFGID: 781BXTZ-5
Your Price:
$3,272.12
Add Calibration w/ Certificate?
No
  • No
  • Yes - Contact Me With A Quote
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

The Starrett 781BXTZ-5 4-5" and 100-125 mm Range bore gage set is part of the AccuBore series. AccuBore is a high-quality, trigger-activated, two-point and three-point contact bore gaging system with extended range. Its convenient single-hand operation provides speed and control. Simply squeeze the trigger, insert the gage into the bore and release the trigger for an instant reading from the large, easy-to-read digital display. What makes AccuBore superior to other gages are features like the mechanically-driven parallel anvils which extend simultaneously, establishing a more true alignment to the axis of the bore. This provides consistent pressure, resulting in more accurate readings than models with spring-driven contacts which are subject to pressure variations. Speed and convenience are further enhanced by the repositionable AccuBore® indicator, which may be swiveled and rotated for left, right hand or even vertical viewing. The gage also features a set of "Go-No-Go" lights in the readout display that quickly indicates whether a bore measurement is within a preset tolerance.

Specifications

  • Range:4-5" and 100-125 mm
  • Accuracy:.00015"-.004
  • Details:Measuring Depth: 4"-100 mm Ring Diameter: 5.0"-127 mm
  • Resolution:.00005"
