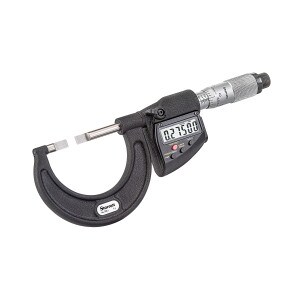

Starrett 786.1MEP-125 Blade Electronic Micrometer 100-125mm with Output and Non-rotating spindle

by Starrett
ID#: 786.1MEP-125-STR
|MFGID: 786.1MEP-125
Your Price:
$1,017.31
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Micrometer-Non (Ball, Point, Blade, Disc, Indicating) (+ $35.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Starrett 786.1MEP-125 Blade Electronic Micrometer 100-125mm with Output and Non-rotating spindle The Starrett 786MEP-125 Electronic Blade-Type Micrometer has a measuring Range of 1000-125mm- .984-1.968". Features Metric graduations and a non-rotating Spindle, Speeder Thimlbe with SPC Output. The 786 Series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings and a speeder for quick adjustment on all sizes. The non-rotating spindle prevents the blade from turning in narrow slots or rolling off shoulder and is an extremely hard and stable one-piece spindle. It's non-glare satin chrome finish minimizes annoying surface glare under bright lights indoors or filters out UV light. Also includes an Automatic OFF feature after 30 minutes of non-use.

Specifications

  • Specifications:• Equipped with an RS232 output - ideal for use with DataSure Wireless Data Collection System• Starrett no-glare satin chrome finish on thimble and sleeve• Large, easy-to-read .275" (7mm) tall characters, high contrast LCD digital readout• Attractive no glare black wrinkle finish on the frame• Auto Off after 20 minutes of nonuse• Inch-millimeter conversion on English versions• Smooth friction thimble for uniform pressure• Measurement HOLD button• Zero at any position• Retain and return to true zero reading• .030" Blade Thickness• Data Output• Resolution: .00005" (0.001mm)• Accuracy +--.0001" (+--0.002mm)• PRESET button to install any reading at any position• Ability to set minimum and maximum limits
