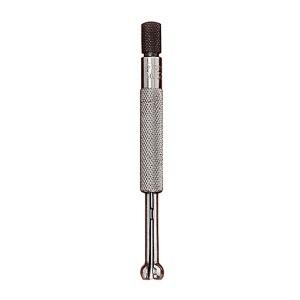

Starrett 829C Small Hole Gage .300-.400"-7.6-10.2mm 3-3-8"-85mm Length

Brand: Starrett
ID#: 829C-STR
|MFGID: 829C
Your Price:
Add Calibration w/ Certificate?
  • No
  • Yes - A2LA Calibration Bore Gage & Indicator (+ $39.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information


The Starrett 829 Series Small Hole Gages are well balanced tools that are ideal for accurately measuring small holes, slots, grooves and recesses in all kinds of work. They all feature a hardened-ball measuring surface with two-point contact, the radius on each gage is less than the minimum diameter to be measured, which provides the two-point contact necessary for maximum accuracy. All have a smooth, sensitive adjustment for better feel, giving more accurate measurements and the adjustment of the gage beyond their Range is restricted by a safety stop that prevents breakage. Accurate measurements are obtained by slightly "rocking" these gages in the hole to be measured. This will guarantee contact at the true diameter. The final size is then obtained by measuring over the ball contacts with a micrometer. This model has a measuring Range of .300-.400" - 7.6-10.2mm and is approximately 3-3-8" - 85mm in length. This particular series is used for general work purposes.


  • Range:.300-.400" - 7.6-10.2mm
  • Type:Small Hole
