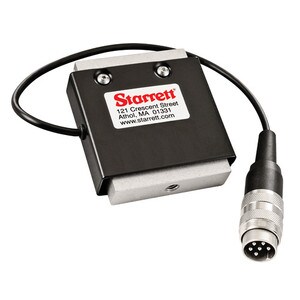

Starrett Force FLC-10P Premium Load Cell Sensor; 10N

by Starrett
ID#: FLC-10P-STR
|MFGID: FLC-10P
Your Price:
$1,812.50
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Load Cell: Tension OR Compression (0 - 500 lbs.) (+ $150.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Starrett FLC-10P Premium Load Cell Sensor has a capacity of 10N, 2lbf, 1kgf. These are S-Type Sensors and ideal for low force applications where extra overload protection is required. Premium load cells feature a safe overload of 1000% of the sensor's rated capacity. The FLC Series load cell sensors are full-bridge sensors designed for force measurement applications. Temperature compensated with a measurement accuracy of ±0.1% full scale throughout the entire Range of the sensor's rated capacity. Designed for use on FMS Series force measurement test frames. Featuring TEDS identification per IEEE 1451.4 so they are "plug & play ready". All sensor characterization and calibration data is stored within the sensor's electronics. Supplied with a NIST Certificate of Calibration with uncertainty.

Specifications

  • Range:10N, 2lbf, 1kgf
  • Type:S-type, premium
  • Accuracy:+--0.1% Full Scale
  • Resolution:10,000:1
