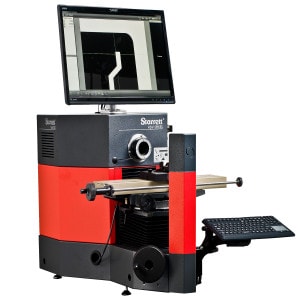

Starrett HDV300-M3-2LED Horizontal Digital Video System

Brand: Starrett
ID#: HDV300-M3-2LED-STR
|MFGID: HDV300-M3-2LED
Quote Required
Contact MSI Viking for Virtual or In-Person Demo!
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

Starrett HDV300-M3-2LED HDV300 with 300mm x 150mm 12"x6" of stage travel with MetLogix M3. Lenses not included.

Specifications

  • Range:X= 12" / 300mm, Y= 6" / 150mm
  • Type:Horizontal, Bench top
  • Accuracy:E1= 3.0µm + L/33
  • Resolution:20µin (0.5µm)

OPTIONAL ACCESSORIES

ID#Product NamePrice
4422-1-STRStarrett 4422-1 300mm Line Standard NIST cert $2,151.46
4H002-1-STRFixed Vise – 1-1/4” Capacity $439.46
4H003-1-STRRotary Vise – 1-1/4” Capacity $737.06
4H004-1-STRVee Block on Rotary Base $714.67
5584-1-STRStarrett 5584-1 400mm Line Standard NIST traceable $2,391.46
5703-STRStarrett 5703 System Dust Cover for HDV300 & HDV400 $44.79
5781-STRStarrett 5781 Light Shield for HDV300 & HDV400 $193.06
6306-STRStarrett 6306 .30X Telecentric Lens with 18.5X Magnification on 24” Monitor $2,941.87
6309-3-STRStarrett 6309-3 6.5:1 Zoom Lens $1,539.21
6331-STRStarrett 6331 .50X Telecentric Lens with 21X Magnification on 24” Monitor $2,695.46
6332-STRStarrett 6332 .80X Telecentric Lens with 49X Magnification on 24” Monitor $2,240.00
6333-STRStarrett 6333 1.0X Telecentric Lens with 62X Magnification on 24” Monitor $2,240.00
6334-STRStarrett 6334 2.0X Telecentric Lens with 124X Magnification on 24” Monitor $2,240.00
6335-STRStarrett 6335 4.0X Telecentric Lens with 247X Magnification on 24” Monitor $2,856.54
7010-STRStarrett 7010 Clean air kit (positive air pressure kit) $340.27
7430-STRStarrett 7430 Fixture for FOV, VED Mag Checker and Grid $2,037.33
7821-STRStarrett 7821 Adapter Plate for FOV, VED Mag Checker $426.67
7P000-STRCenters & Vees $819.21
7U000-STRGlass Plate Work holder $697.60
8170-STRCabinet Stand 31” High $1,693.87
8171-STRCabinet Stand 22” High $1,693.87
8268-STRStarrett 8268 VED Mag Checker for pixel calibration NIST traceable $677.33
8392-STRStarrett 8392 Pivoting illuminator lamp house $1,874.13
8440-1-STRStarrett 8440-1 4" x 7" Calibration standard for pixel calibration and verification NIST traceable $1,497.60
APT60-25-HDV-STRStarrett APT60-25-HDV CNC 60mm Rotary Fixture Quote
APT60-40-HDV-STRStarrett APT60-40-HDV CNC 60mm Rotary Fixture Quote
M3-PD-STRStarrett M3-PD MetLogix Conversion of DXF to PDF $1,600.00
M3-PF-STRStarrett M3-PF MetLogix Profile Fitting Module $1,600.00
M3-TM-STRStarrett M3-TM MetLogix Thread Module $1,600.00
