Starrett Force VISE-227A-M5 Vise Action Fixture; 100N- 22lbf-Aluminum
Brand: Starrett
ID#: VISE-227A-M5
Product Information
Description

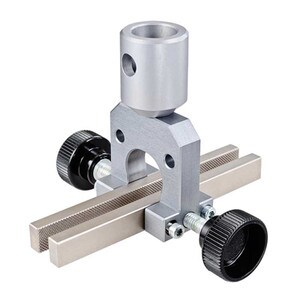

Starrett VISE-227A-M5 Vise Action Fixture has a load capacity of 100N-22lbf with an M5 (female) Adapter size. This vise is ideal for film, paper materials, foils, small wire, yarn, filaments, etc. Constructed of aluminum with a Jaw dependent Clamping surface and an 8mm opening width. The jaws can be tightened using two independent knobs. Rotating the knob tightens and draws one of the jaws inward-outward. Supplied as a pair of upper and lower grips. Jaw faces are not supplied and must be ordered separately. (See JAW-227 Series for available sets)Specifications
- Range:100N- 22lbf
- Type:Aluminum Vise
- Details:Adapter Size: M5 (female) Operating Temperature: 0°C to +130°C Clamping Surface: Jaw dependent, Opening Width: 0-8mm
OPTIONAL ACCESSORIES
| ID# | Product Name | Price |
|---|---|---|
| JAW227-B100 | Starrett Force JAW227-B100 Jaw Face Set | $383.52 |
| JAW227-B25 | Starrett Force JAW227-B25 Jaw Face Set | $235.57 |
| JAW227-B50 | Starrett Force JAW227-B50 Jaw Face Set | $337.35 |
| JAW227-BR100 | Starrett Force JAW227-BR100 Jaw Face Set | $489.06 |
| JAW227-BR25 | Starrett Force JAW227-BR25 Jaw Face Set | $286.46 |
| JAW227-BR50 | Starrett Force JAW227-BR50 Jaw Face Set | $415.56 |
| JAW227-D100 | Starrett Force JAW227-D100 Jaw Face Set | $653.96 |
| JAW227-D25 | Starrett Force JAW227-D25 Jaw Face Set | $448.54 |
| JAW227-D50 | Starrett Force JAW227-D50 Jaw Face Set | $550.31 |
| JAW227-PY100 | Starrett Force JAW227-PY100 Jaw Face Set | $543.71 |
| JAW227-PY25 | Starrett Force JAW227-PY25 Jaw Face Set | $311.90 |
| JAW227-PY50 | Starrett Force JAW227-PY50 Jaw Face Set | $462.68 |
| JAW227-WV25-STR | Starrett Force JAW227-WV25 Jaw Face Set, Wave, 10 x 25mm, for VISE-227 Series | $537.12 |
PRODUCT SERIES
| ID# | Product Name | Price |
|---|---|---|
| VISE-140K | Starrett Force VISE-140K Small vise grip, 100N,including pyramid jaws clamping surface 15x15mm | $773.63 |
| VISE-154A-10-1 | Starrett Force VISE-154A-10-1 Vise Action Fixture; 10kN- 2250lbf-Aluminum | $1,506.75 |
| VISE-154S-20-1 | Starrett Force VISE-154S-20-1 Vise Action Fixture; 20kN-4500lbf-Steel | $1,881.79 |
| VISE-227A-M5 | Starrett Force VISE-227A-M5 Vise Action Fixture; 100N- 22lbf-Aluminum | $447.60 |
| VISE-227S-46 | Starrett Force VISE-227S-46 Vise Action Grip Set (2), 100N, 46mm opening, without jaw set | $736.88 |
| VISE-9 | Starrett Force VISE-9 Vise Grip | $1,260.81 |
| VISE-90-50 | Starrett Force VISE-90-50 Vise Grip | $2,210.65 |
