Starrett Force WEDGE-7S-1 Action Fixture; 2kN- 450lbf

Brand: Starrett
ID#: WEDGE-7S-1-STR
|MFGID: WEDGE-7S-1
Your Price:
$1,811.12
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

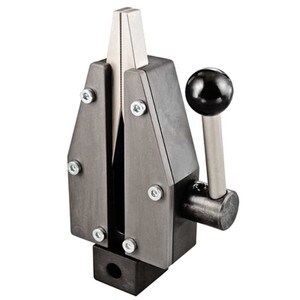

Starrett WEDGE-7S-1 Wedge Action Fixture has a load capacity of 2kN-450lbf. The jaw opening opens from one side only. The WEDGE-7 Series is for smaller samples. Features a spring-loaded lever arm for load-unloading samples quickly. The maximum opening is 10mm (dependent on jaw set used) with a 40mm clamping height and jaw widths of 10mm. Supplied as a pair (upper and lower grips) without jaws. Jaw sets must be ordered separately (See JAW-7 Series for available jaws).

Specifications

  • Range:2kN-450lbf
  • Type:Wedge Action Fixture, Steel
  • Details:Operating Temperature: 0°C to +130°C

OPTIONAL ACCESSORIES

ID#Product NamePrice
JAW7-PY-STRStarrett Force JAW7-PY Jaw Face Set $841.48
JAW7-V2-STRStarrett Force JAW7-V2 Jaw Face Set $861.27
