06930015 TWIN-SURF portable roughness tester, Bluetooth® integrated

Brand: Brown & Sharpe-TESA-Hexagon
ID#: 06930015-HEX
|MFGID: 06930015
Your Price:
$3,063.44
Add Calibration w/ Certificate?
No
  • No
  • Yes - A2LA Calibration Meter: Surface Finish (Profilometer, PocketSurf) (+ $105.00)
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

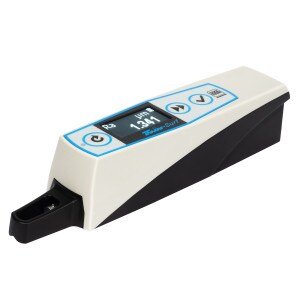

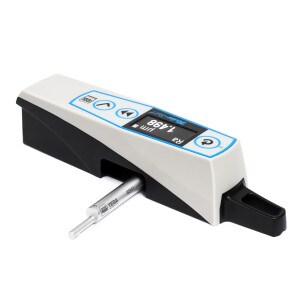

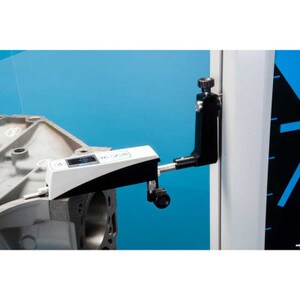

The TESA TWIN-SURF is a compact, portable roughness tester, compatible with any articulated support and powered by a rechargeable battery that enables long-term self-sufficiency.

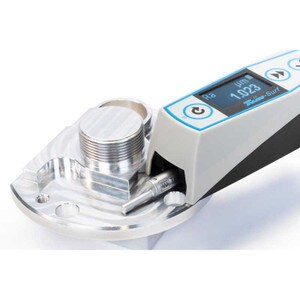

Its monochrome OLED display optimises power consumption and ensures high contrast for clear reading.

Simplified ergonomics with 3 buttons on the top allows the easy definition of measurement parameters, adjustment of tolerances and starting of the measurement. Each configuration is automatically saved in the internal memory.

Specifications

  • Range:Z: ±200 µm / X: 17.5 mm

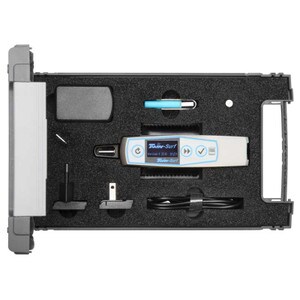

  • Details:What's included
  • Bluetooth Integrated
  • TWIN-SURF portable roughness gauge
  • SB 51 probe
  • Main charger with EU and US charger adaptors
  • Roughness Standard Ra=2.97 μm
  • Adapter for 8-mm diameter holder
  • Key to remove the probe protection
  • USB A-C cable
  • USB key including user manual, measuring report, declaration of conformity and Tesa Data Studio software basic version.
  • Specifications:R = roughness in μm
    0.05 μm + (5% R)
  • Resolution:0.001 μm / 0.01 μinch

Features

  • Bluetooth® integrated

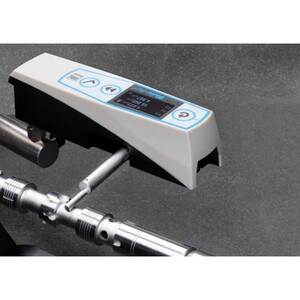

  • The probe can be rotated by 90° to enable transverse measurement and increase the measurement options.
  • The TESA TWIN-SURF can be connected to a PC via a USB cable to use the free TESA DATA-STUDIO software.
  • Free software included for creating measurement reports
