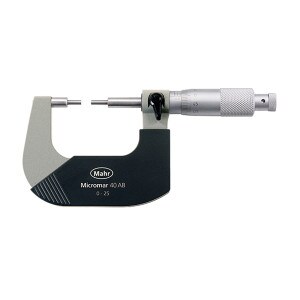

Mahr 40AB 4134100 Spline Micrometer; 0-25mm Range

Brand: Mahr
ID#: 4134100
|MFGID: 4134100
Your Price:
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information


Mahr 40AB 4134100 Spline Micrometer has a measuring range of 0-25mm with 0.01mm Readings, 0.04mm Error Limit and a 0.5mm Spindle thread pitch. These micrometers have spline or reduced measuring faces and are used for measuring recesses, grooves, etc. Features include a hard lacquered steel frame for measuring ranges up to 50-75mm-2-3". The spindle and anvil are made of hardened steel and carbide tipped. Includes satin-chrome finished scales, heat insulators, a locking device and an integrated ratchet with rapid drive. Supplied with a case.


  • Range:0-25mm
  • Graduation:0.01mm
  • Type:Mechanical, spline
  • Accuracy:0.04mm
