Mahr 40AS 4134200 Blade Micrometer; 0-25mm Range

Brand: Mahr
ID#: 4134200
|MFGID: 4134200
Your Price:
$310.66
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information

Description

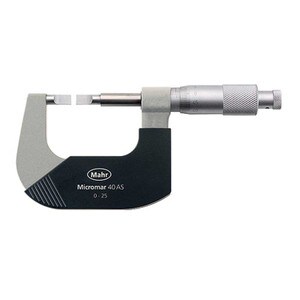

Mahr 40AS 4134200 Blade Micrometer has a measuring range of 0-25mm with 0.01mm Readings, 0.04mm Error Limit and 0.5mm Spindle thread pitch. These micrometers feature a sliding spindle and measuring spades for measuring narrow recesses, grooves, etc. Hard lacquered steel frame for measuring ranges up to 50-75mm- 2-3". The spindle and anvil are made of hardened steel and the scales have a satin-chrome finish. Also includes heat insulators, a rapid drive with integrated ratchet and a case.

Specifications

  • Range:0-25mm
  • Graduation:0.01mm
  • Type:Mechanical, blade
  • Accuracy:0.04mm
