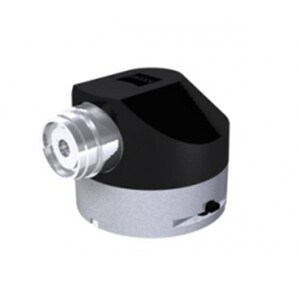

ZEISS 620670-9550-000 RDS adapter plate for VAST XXT probe head

Specifications

• Details:Product Type: Adapter Plate
  Connection Type In: M5
  Application: Tactile
  Stylus Type: Adapter Plate
  Weight: 188

  The VAST XXT probe head is attached to the RDS-XXT adapter plate. Alternatively, an extension can be placed between the probe head and the adapter plate. The RDS/XXT probe head system is a combination of the articulating RDS system and the VAST XXT probe head. The articulating system is the probe head carrier. When the RDS adapter plate is inserted into the adapter plate holder of the RDS system for the first time, the LED above the ZEISS logo may flash on the RDS adapter plate. The flashing indicates that the firmware of the adapter plate is being updated. The flashing can last several minutes.

  The following values may not be exceeded: Extension of the probe head (extension between RDS-XXT exchangeable disk and VAST XXT measuring head) TL1, TL2, TL3: 100 mm Max. weight of the stylus system (incl. adapter plate) TL1 and TL2: 10 g - TL3: 15 g Total length of the styli: TL1: 30 mm - 125 mm TL2: 125 mm - 25 mm TL3: 30 mm - 150 mm

  The features of ZEISS measuring machines and the guaranteed machine specifications are only guaranteed when using original ZEISS exchangeable plates. There is a not insignificant negative influence on accuracy and stability if adapter plates from unknown / non-certified manufacturers are used. Check the necessity of performing the DeviceActovator when using a new ZEISS adapter plate. Further information and operating instructions are available at the following link in the Download Center: https://portal.zeiss.com/download-center/softwares/imt
• Specifications:One RDS adapter plate
