626103-0045-014, Ø1.0 mm M3 XXT, Stylus stepped, silicon nitride sph, tung carb shaft, L: 14.0 mm

Brand: ZEISS
ID#: 626103-0045-014-ZSS
|MFGID: 626103-0045-014
Your Price:
Shipment within Next day
Questions?CallCall Us864.433.9771|Mon-Fri 8-5 EST

Product Information


M3 XXT, Stylus stepped, silicon nitride sphere, tungsten carbide shaft, Length: 14.0 mm

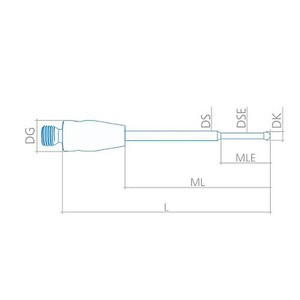

  • Details:Product Type: Stylus
    Connection Type In: M3 XXT
    Ø Sphere (DK): 1.0 mm
    Length (L): 14.0 mm
    Application: Tactile
    Ø Shaft (DS): 1.0 mm
    Ø Shaft (DSE): 0.8 mm
    Ø Body (DG): 5.0 mm
    Measure Length: 5.0 mm
    2. Meas. Len.: 5.0 mm
    Stylus Type: Stepped
    Stylus Tip: Sphere
    Tip Material: Silicon Nitride
    Stem Material: Tungsten Carbide
    Weight: 0.75

    Spherical styli have the largest field of application because they have the same probing behavior in every direction. They are therefore suitable for all common measuring tasks such as measuring bores and surfaces. The larger the stylus sphere size, the larger the mechanical filter. This means that the profile of your workpiece is smoothened, which is often required in form measurement. The deviation from the ideal sphere shape is usually shown in Grade. ZEISS styli spheres have Grade 5 as standard, but can also be offered in a higher Grade 3 for special requirements. The stepped shaft has the advantage of a greater shaft thickness, which is reduced towards the measuring tip. This stepped shaft increases the stability of the shaft while maintaining the same length (depending on the sphere diameter). At the same time, however, the usable measuring length is reduced.

    Silicon nitride styli are just as universally applicable as ruby styli. However, they show less material deposits when scanning aluminum or other soft materials. ZEISS uses carbide shafts for standard styli. These represent a good combination in terms of weight, rigidity and thermal expansion.

    Depending on the material of the styli and the workpiece, wear of the styli may occur. Therefore, we recommend to check the styli regularly for wear. Also remember to clean the styli or replace them if necessary. ZEISS Styli Cleaning Wipes are available. To learn more about ZEISS styli, book our free stylus eLearning on the ZEISS eLearning platform.


✔ Silicon nitride sphere especially suitable for aluminum
✔ Carbide shaft with high stiffness
✔ Stepped shaft to provide higher stability
✔ Proven ZEISS quality through the use of selected materials
